Drilling Attachments
Contact us

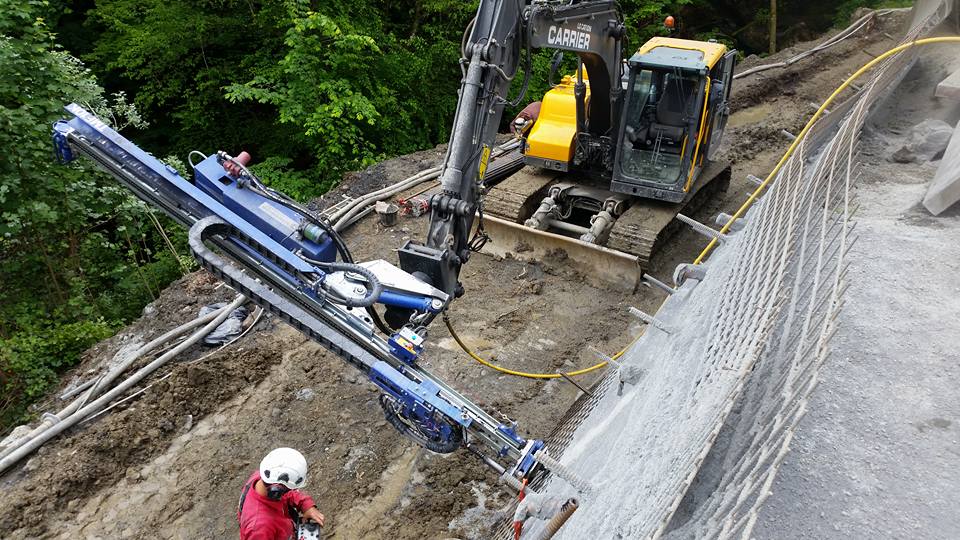

TMF10
Application: Bolting and blasthole drilling
Excavator T: Min 7
Specifications
| Bolting and blasthole drilling | Bolting and blasthole drilling |
| Excavator T: | Min 7 |
| Weight Kg (W/O safety cage): | 1 100 – 1 160 |
| Hydraulic requirements l/min@bar: | 85 – 120 @ 230 |
| Anchors: | R32-R38 / R51-R76 |
TMF14
Application: Bolting and blasthole drilling
Excavator T: Min 15
Specifications
| Bolting and blasthole drilling | Bolting and blasthole drilling |
| Excavator T: | Min 15 |
| Weight Kg (W/O safety cage): | 1 550 |
| Hydraulic requirements l/min@bar: | 135 – 170 @ 230 |
| Anchors: | R32-R38 / R51-R76 |
TMF15
Application: Bolting and overburden drilling
Excavator T: Min 20
Specifications
| Bolting and blasthole drilling | Bolting and overburden drilling |
| Excavator T: | Min 20 |
| Weight Kg (W/O safety cage): | 2 500 |
| Hydraulic requirements l/min@bar: | 170 – 250 – 280 @ 230 |
| Anchors: | R32-R38-R51-R76 |
TMF20
Application: Bolting and overburden drilling
Excavator T: Min 30
Specifications
| Bolting and blasthole drilling | Bolting and overburden drilling |
| Excavator T: | Min 30 |
| Weight Kg (W/O safety cage): | 2 900 |
| Hydraulic requirements l/min@bar: | 280 – 190 @ 230 |
| Anchors: | R51-R76 – T114 |
